5 Inch 480x854 IPS TFT LCD Display With PCAP

Name: 5 Inch 480x854 IPS TFT LCD Display With PCAP
Brand: HOTHMI
Price: 1 USD

Wholesale 5 Inch 480x854 IPS TFT LCD Display With PCAP from china suppliers

Brand Name : HOTHMI

Model Number : TFT-H050A11FWIST5C20

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : TFT Vertical Screen

Display Content : 480x854

Special Instructions : GT911 with CTP Capacitive Touch Chip

Viewport Window Size : 5.0 inch

Driver IC Model : ST7701

Product Application : Outdoor Instrumentation

Contact Now

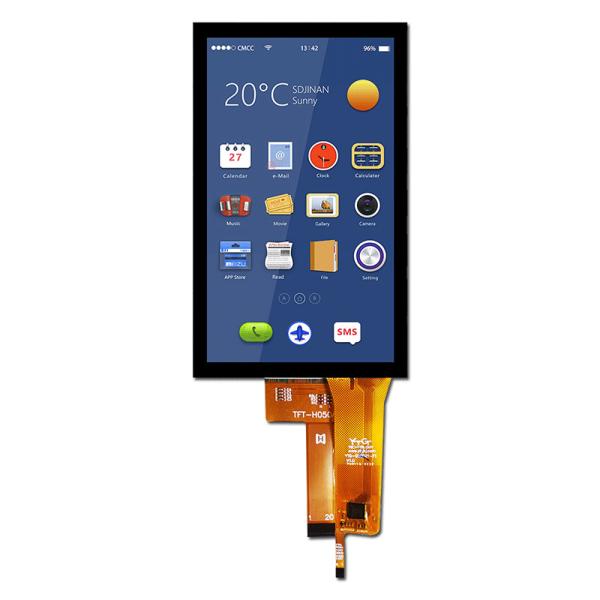

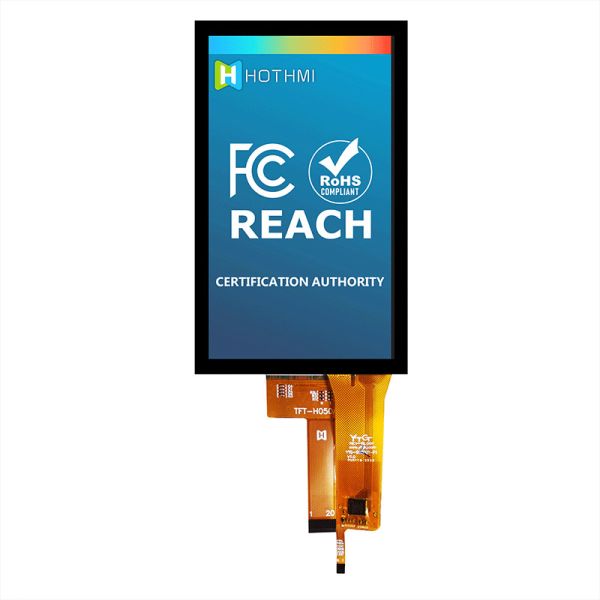

5 Inch TFT LCD IC ST7701S With Touch Screen Module/480x854 Dots/TFT-H050A11FWIST5C20

Product parameters

Display Size - 5.0 inch
Perspective - Full Perspective

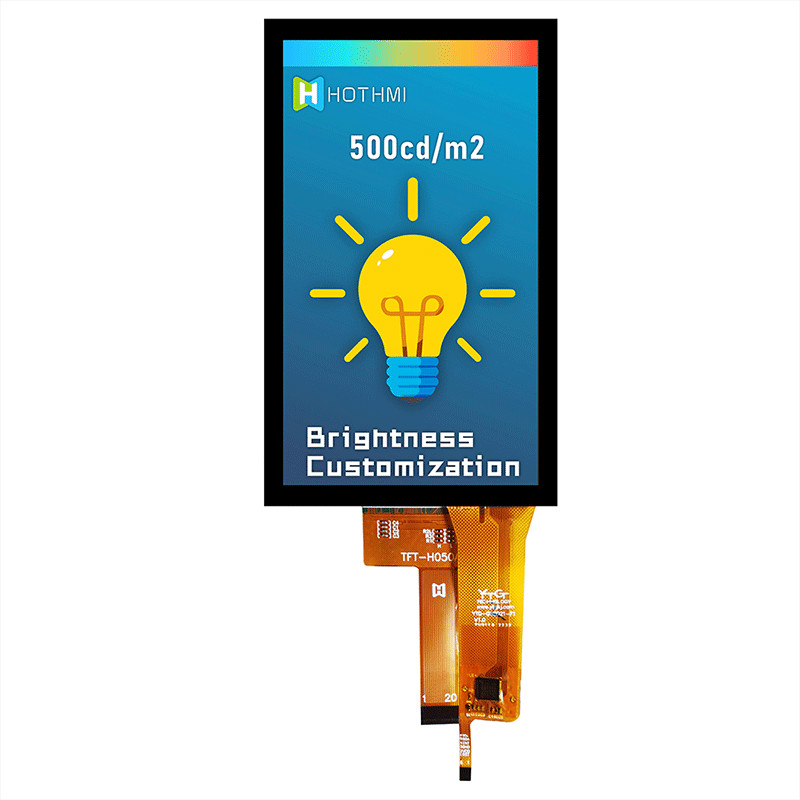

Backlight brightness - 550cd/m2
Connection method PIN number - 20+6PIN
Interface - MIPI
Operating temperature - (-20~70℃)
Supply Voltage - 3.3V

General Feature

Item	Standard Value			Unit
Display Size	5.0			Inch
Number of Pixels	480(H)x3(RGB)*854(V)			dots
Active Area	61.6320(H) * 109.6536(V)			mm
Outline Dimension	72.00(H) * 122.245(V) * 4.15(D) <TFT+CTP>			mm
Viewing Direction	Full O’Clock			-
Interface	MIPI 1 Lane MIPI 2 Lane(Default)			-
Driver IC	ST7701			-
Driver Condition	VCI=3.3V,IOVCC=1.8V			V
Backlight-1	White LED/12 PCS/6 PCS serial 2 ways parallel			-
Touch Panel	Whitout TP	Whit RTP	Whit CTP √	-
CTP Driver IC	GT911			-
CTP Driver Condition	TP-VDD=3.3V			V
Operation Temperature	-20 ～ 70			℃
Storage Temperature	-30 ～ 80			℃

CTP Pin_SIGNAL

1	CTP-RES
2	CTP-VDD
3	GND
4	CTP-INT
5	CTP-SDA
6	CTP-SCL

TFT Pin Description

Pin NO.	Symbol	Description
1	NC	No Connect
2	LED_K	LED Cathode
3	NC	No Connect
4	LED_A	LED Anode
5	NC	No Connect
6	VCI	Analog Power
7	IOVCC	Power Supply for I/O System
8	TE/NC	No Connect
9	RESX	TFT Reset Pin
10	GND	Ground
11	D1P	MIPI DSI positive differential data
12	D1N	MIPI DSI negative differential data
13	GND	Ground
14	DCKP	MIPI DSI positive differential clock
15	DCKN	MIPI DSI negative differential clock
16	GND	Ground
17	D0P	MIPI DSI positive differential data
18	D0N	MIPI DSI negative differential data
19	GND	Ground
20	GND	Ground

Product Description

The TFT-H050A11FWIST4C20 is a 5.0-inch wide temperature IPS TFT-LCD monitor with projected capacitive touchscreen with a resolution of 480x854 pixels. The module has built-in ST7701 driver IC and supports MIPI interface. TFT-H050A11FWIST4C20 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical), contrast ratio 800:1 (typical), brightness 500 nits (typical) value), glare panel, 16:9 aspect ratio. The touch screen has built-in GT911 IC, which supports I2C interface and multi-touch function. The H050A11 model has a projected capacitive touch panel (CTP), but no touch panel option (TFT-H050A11FWIST5N20). The supply voltage (VCC) of the TFT-H050A11FWIST4C20 is 3.0V to 3.6V, with a typical value of 3.3V. It can work in temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.
